Overview
(12V  battery charger)New arrival odm oem battery charger 12V 6A smart automatic pulse Repair lead acid Maintenance-free moto car battery charger
Name
Pulse repair battery charger 12V 6A deep cycle gel agm lead acid car battery desulfator charger
Mode
                                        1206C
Input
110Vac or 220Vac
Output
14.4V  Float charge voltage:13.8V (for 12V lead acid battery)
Output current
                                        6A
Features:
Temperature control compensation charger
Compatibility
35AH,60AH 80AH lead acid battery


Protection
-Short circuit protection
-Overvoltage protection
-Overcurrent protection
-Overheating protection
-Reverse connection protection
Apply to
Children's toy cars, motorcycles, cars, etc.
weight
480g
Pulse repair battery charger 12V 6A deep cycle gel agm lead acid car battery desulfator charger
The Pulse repair battery charger 12V 6A deep cycle gel agm lead acid car battery desulfator charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
   Input Voltage: 100-240Vac input AC voltage
   Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
   Constant Charging Voltage: 14.4V   Float charge 13.8V
C:Charging Mode Pulse repair battery charger 12V 6A deep cycle gel agm lead acid car battery desulfator charger
   3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
   Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
   Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
   Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection   The battery charger will be auto recovered when faults remove
Over Current Protection   Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:Pulse repair battery charger 12V 6A deep cycle gel agm lead acid car battery desulfator charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Pulse repair battery charger 12V 6A deep cycle gel agm lead acid car battery desulfator charger

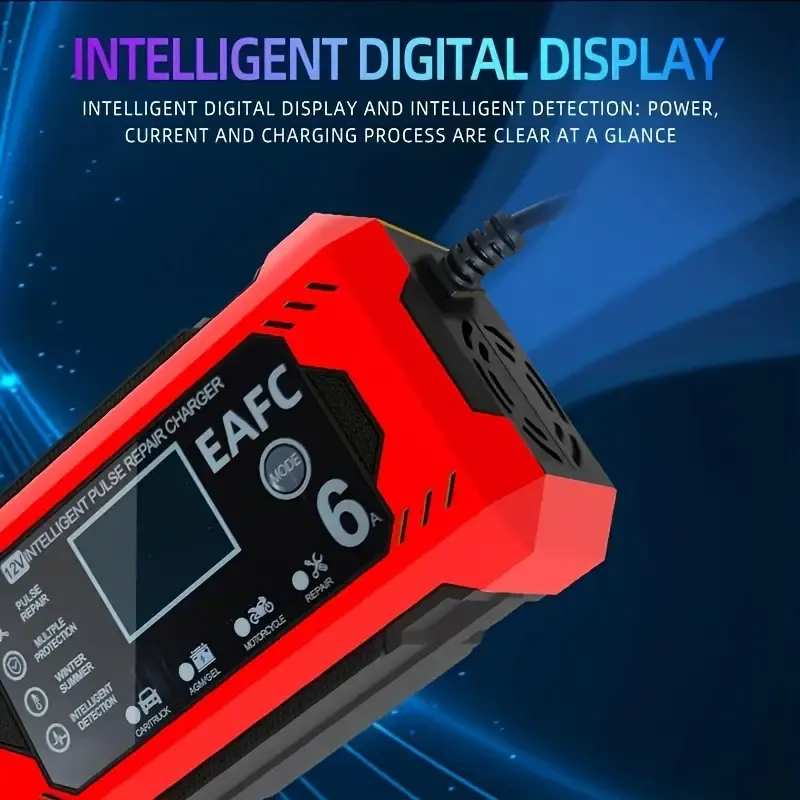

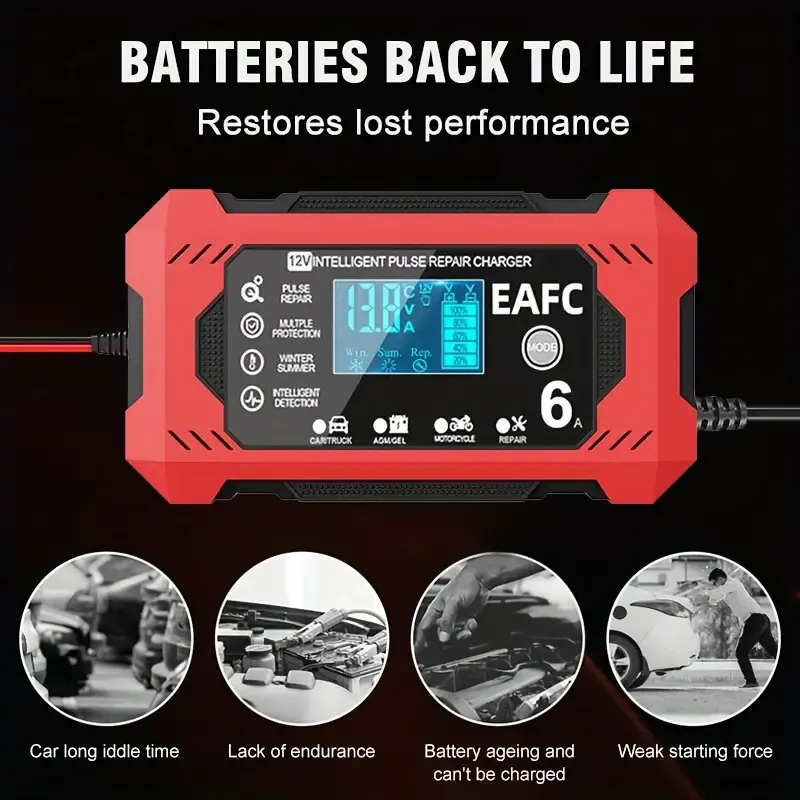

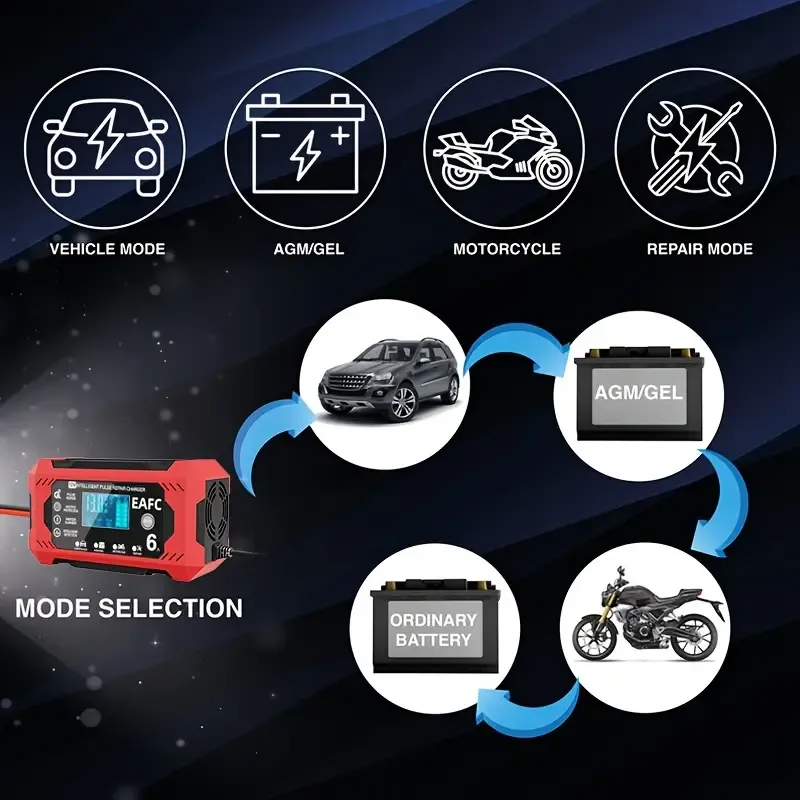

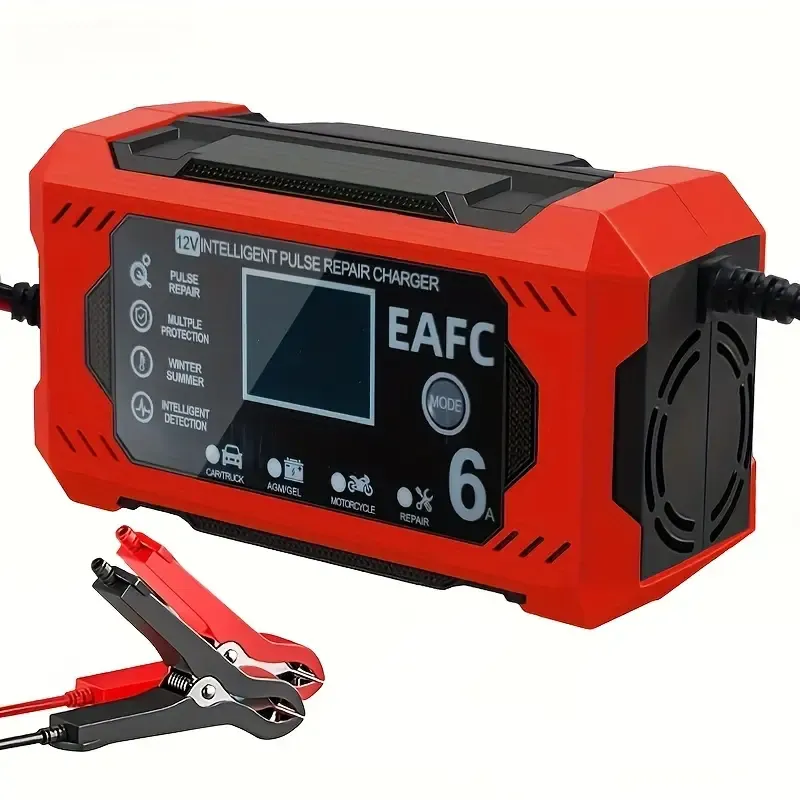

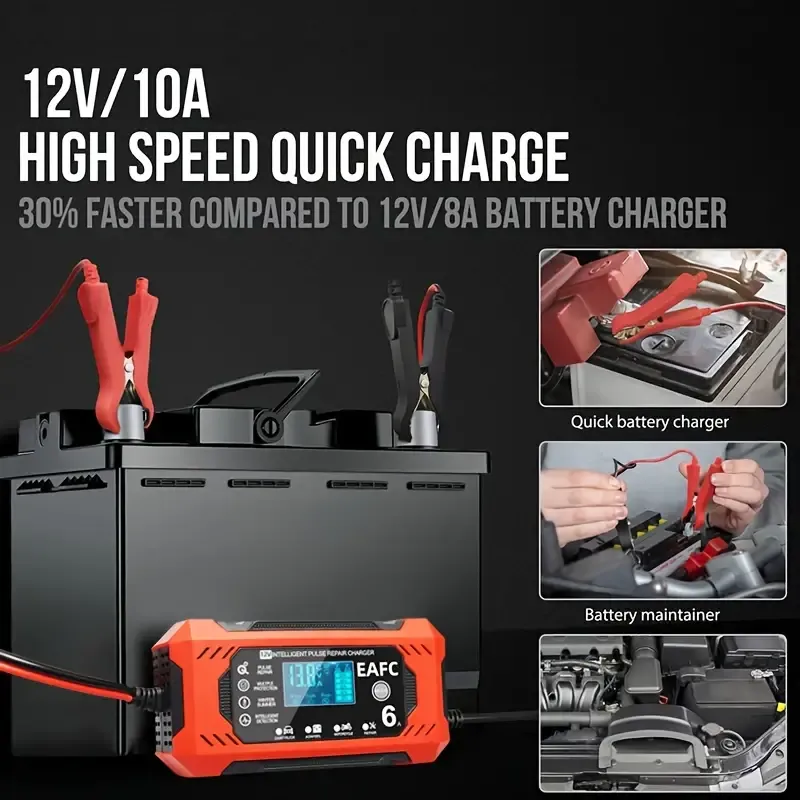

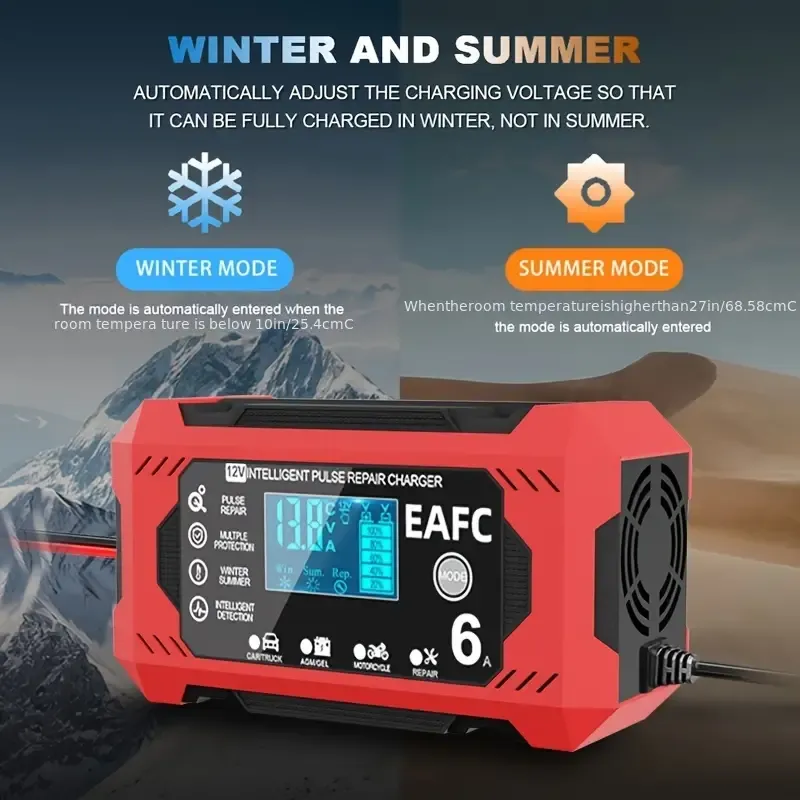

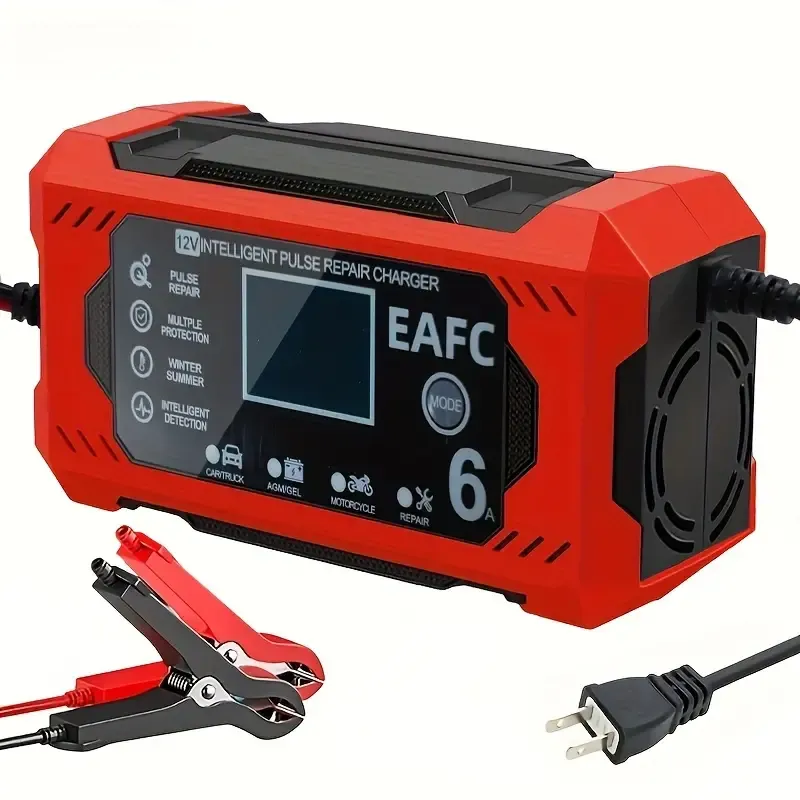

Product picture
Pulse repair battery charger 12V 6A deep cycle gel agm lead acid car battery desulfator charger
We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.
Each charger only can charge for one kind battery, such as if you choose lead acid battery, we will manufacture the lead acid battery charger, it will not work for lithium battery or lifepo4 battery. Because different kind battery charger the charging curve is different.
