35mm-1.37inches concealed hinge jig

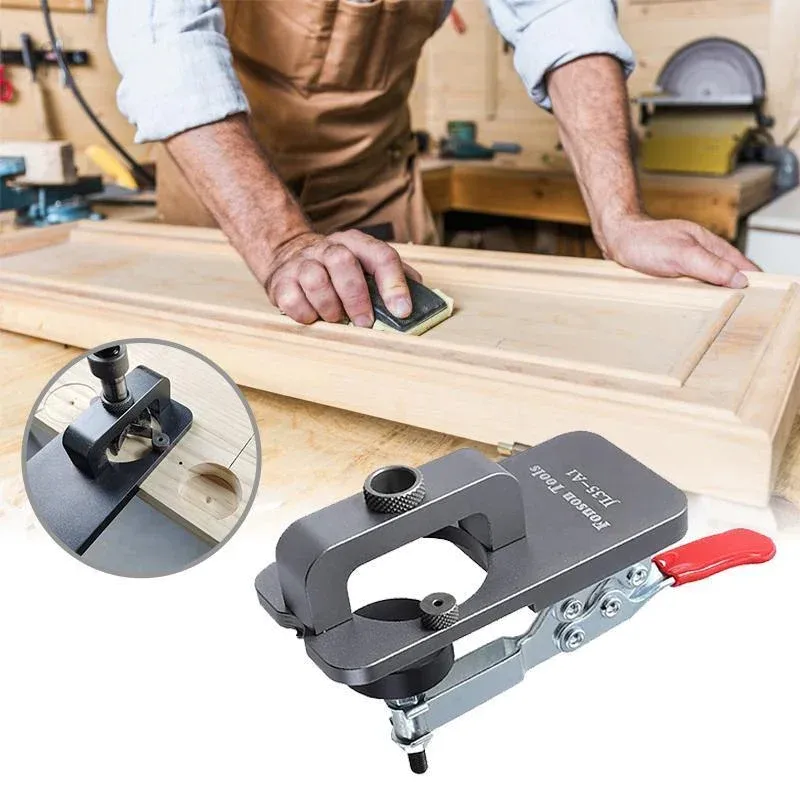

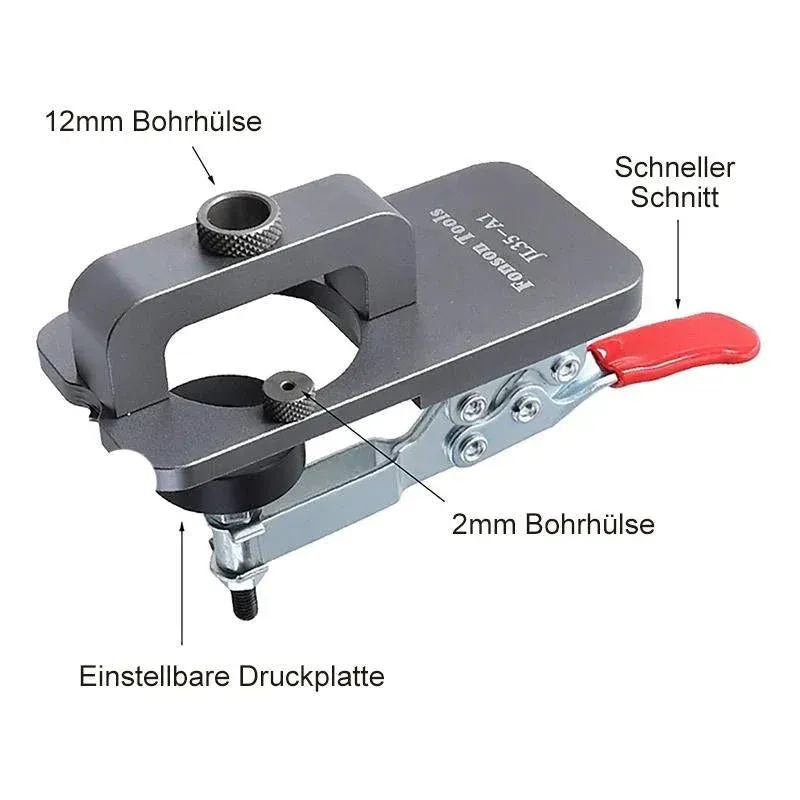

CHARACTERISTICS

• Easy to use: Install a 35mm hole opener, adjust the drilling depth to 12-13mm normally, and then lock the limit ring.
• Durable material: Made of aluminum alloy, precise manufacturing, accurate positioning and convenient operation. Long lasting.
• Easy to adjust: The drill guide can be adjusted to clamp wood boards of different thicknesses. For furniture factories and woodworkers, this is a great tool kit.

INSTALLATION METHOD

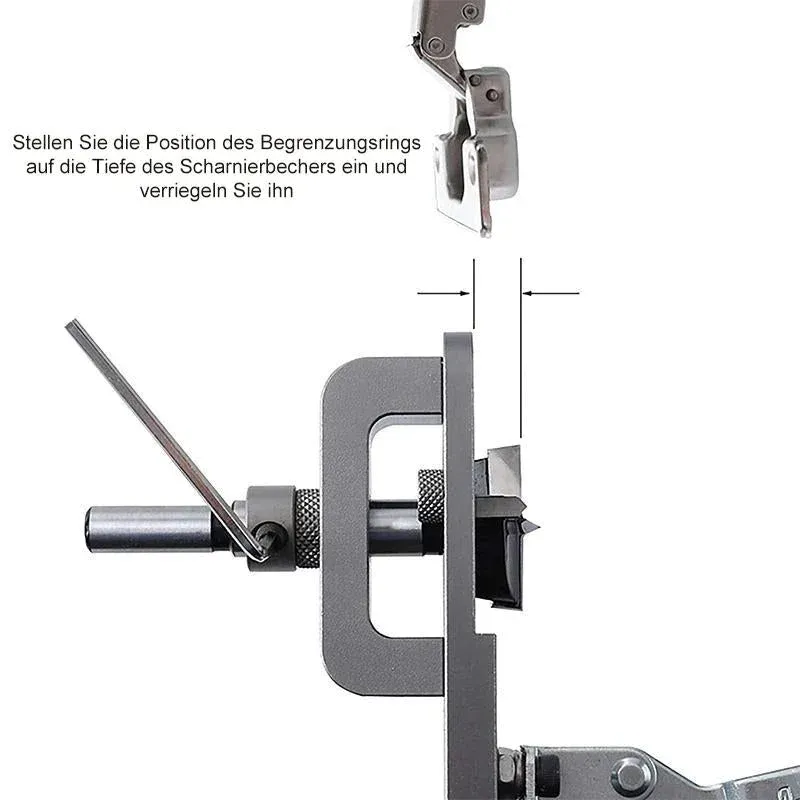

1. Install a 35mm hole opener, adjust the drilling depth, which is usually 12-13mm, and then lock the limit ring.

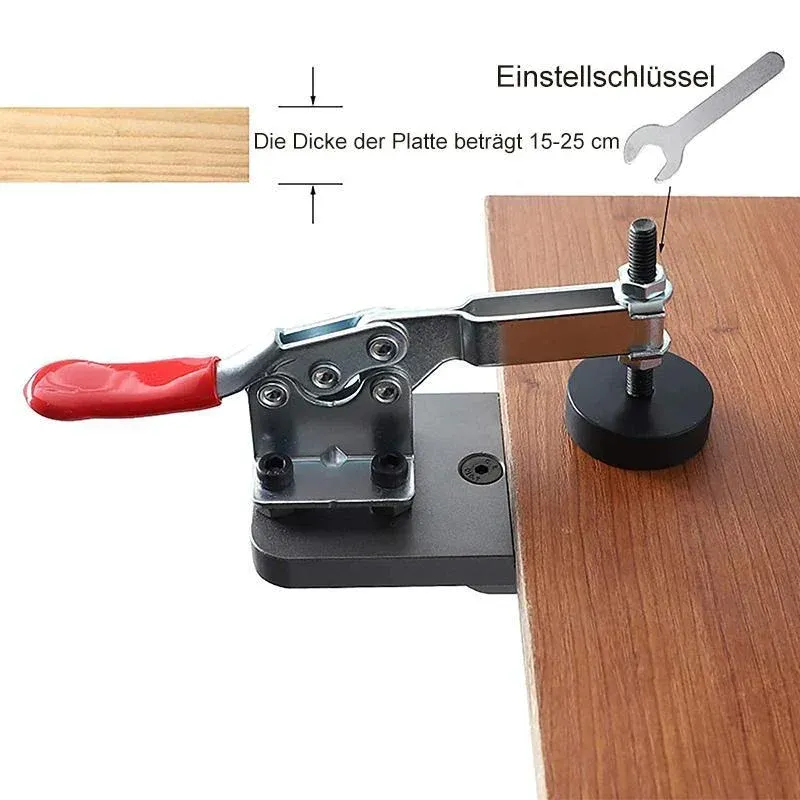

2. Adjust the fixed size of the black pressing block of the quick clamp ( Note: The tool can adjust the fixed plate size to 15-25mm).
3. Move the punch to the marking and punching position on the board and lock the quick clamp.

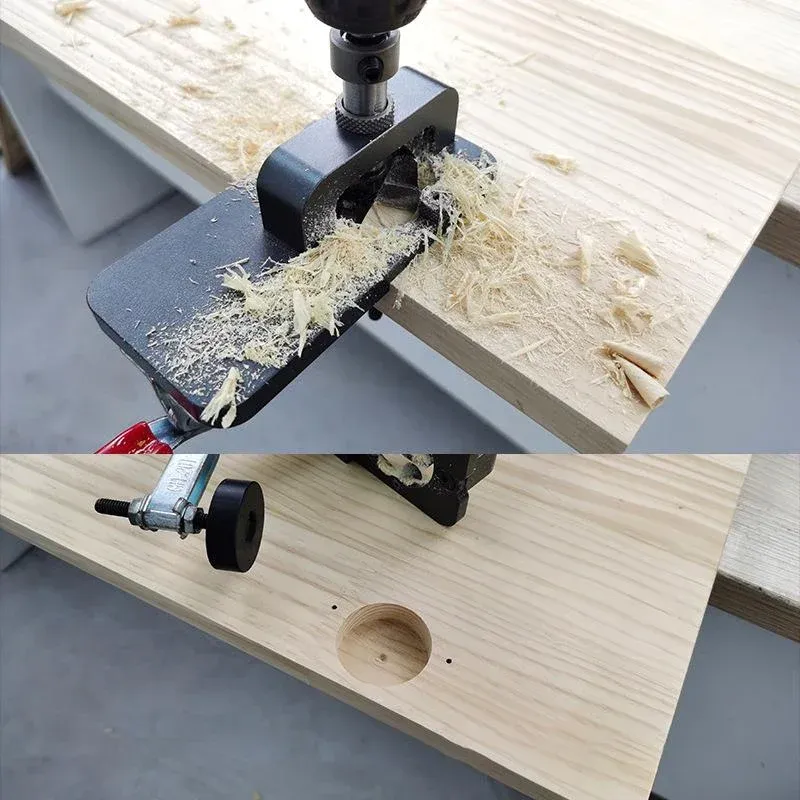

4. Fix the handle of the hole opener with the electric drill, press down the hole at a constant speed to a depth of 12-13mm, and then drill 2mm screw holes on the left and right.
5. The distance from the 35mm hole to the edge is 5mm (the distance cannot be adjusted), which is suitable for most common hinges.

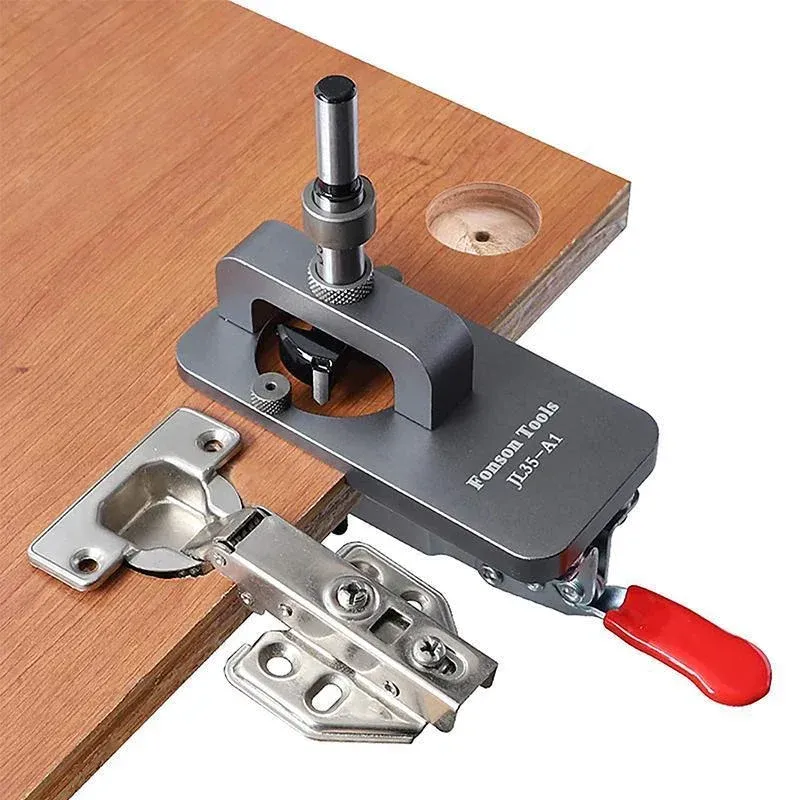

6. Install the 35mm hinge.


SPECIFICATIONS

• Material: aluminum alloy
• Color gray
• Size: 4.72*4.72*2.36 inch/120*120*60mm
• Weight: 1.34lbs

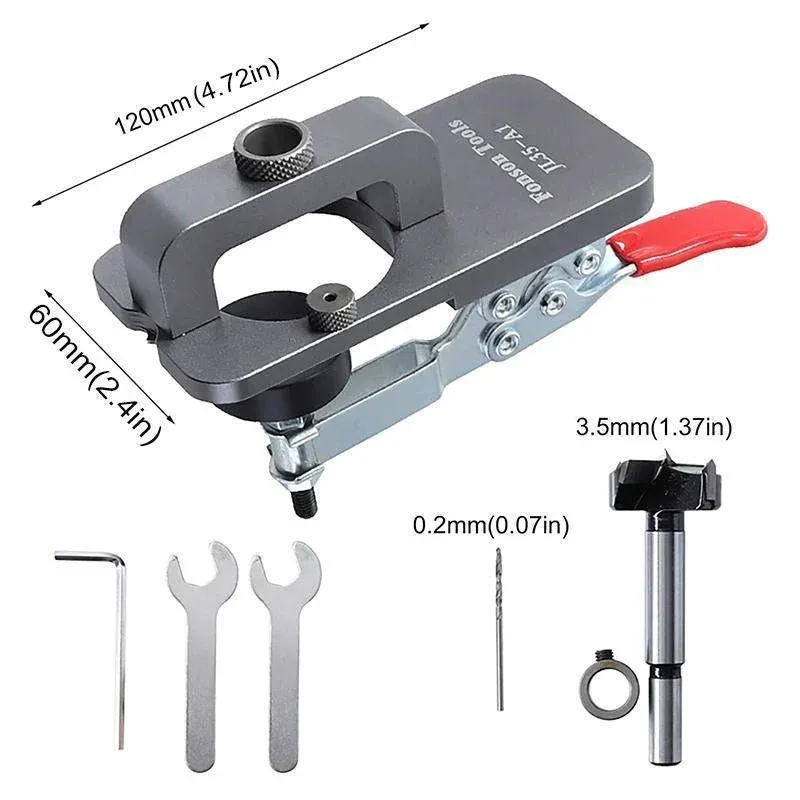

PACKAGE

• 1*35mm / 1.37inches concealed hinge jig :

  1*Hinge punch body;

  1*35mm hole opener (with limit ring);

  2*Wrenches;

  1*2mm drill;

  1*Hex key
